Bafang Motors
750W/1000W
48V 20Ah
UL-certified LG Battery
24″ / 20″
Front / Rear · 4″ Tires
Up to 80 mi
Estimated Range
480 lbs
Maximum Load
20 mph
Maximum Speed

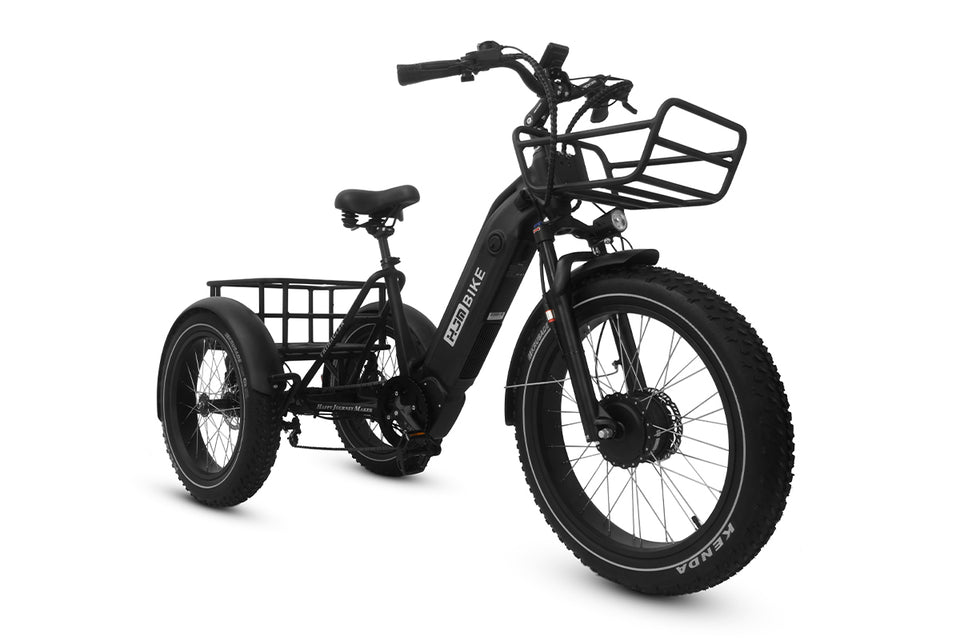

TriHauler Terra Heavy Duty Fat Tire Utility Electric Trike
T3LJ1
$1,799.00
| Save $1,200 (40%)
Free Shipping
15 Day Returns
Warranty Terms
750W/1000W
Bafang Motors
48V 20Ah
UL-certified LG Battery
24″ / 20″
Front / Rear · 4″ Tires
Up to 80 mi
Estimated Range
480 lbs
Maximum Load
20 mph
Maximum Speed
Add to cart
Before you order
What assembly is required?
The wheels and pedals arrive installed. Install the handlebars, follow the supplied setup instructions, and complete the pre-ride checks before riding. See setup guides.
Which configuration is TriHauler Pro?
TriHauler Pro is the T4, now listed as the 1000W Rear Drive TriHauler. Choose 1000W Rear Drive in the motor options above.
Which models use a torque sensor?
The 750W Front Hub configuration uses a speed sensor. The 750W Rear Drive and 1000W Rear Drive configurations use torque sensors. The front-hub model also has a different frame appearance and a 17.5Ah second battery option.
Is riding a trike the same as riding a bicycle?
A trike handles differently from a two-wheel bicycle. Read your model’s manual and practice starting, stopping, and turning in a clear area before regular use. Slow down before turns and follow the load limits. Three wheels do not make a trike tip-proof.
How far can I ride on a charge?
Range depends on battery capacity, assist level, speed, hills, rider and cargo weight, temperature, and tire pressure. Use the range table and its reference conditions as a guide rather than a guarantee.
Where can I find more compatible accessories?
The add-on list is a shortlist. Browse all accessories for more helmets, mirrors, bags, and other options. Check each item's model and mounting requirements.
Where can I check shipping, returns, and warranty?
Eligible vehicle returns must be requested within 15 calendar days of delivery, with no more than 10 miles of use and subject to condition, approval and applicable fees. Eligible core components are covered for 2 years or 1,500 miles, whichever comes first. Review our Shipping, Return & Refund, and Warranty pages before ordering. Contact HJM for help with your specific product or order.
The TriHauler Terra T2, T3 and T4 are heavy-duty electric tricycles for adults, built for everyday errands and carrying more along the way. A low-step frame, fat tires, front and rear baskets, and Bafang motor options bring utility to your daily ride.
How does the low-step design make riding easier?
The low-step frame makes getting on and off easier, while an upright riding position and comfort saddle support everyday outings. Wide 4-inch fat tires cushion the ride on neighborhood streets, mountain roads and rough ground.
What can a heavy-duty cargo electric trike carry?
Front and rear baskets give groceries, picnic supplies and daily essentials a place to ride. TriHauler brings carrying space to a three-wheel electric bike, turning neighborhood trips and outdoor outings into more reasons to ride.
How can dual batteries extend your riding day?
A 20Ah battery powers your daily trips, with an optional second battery for longer rides. Choose single or dual batteries to match how far you travel, whether you are running errands or spending more time outdoors.

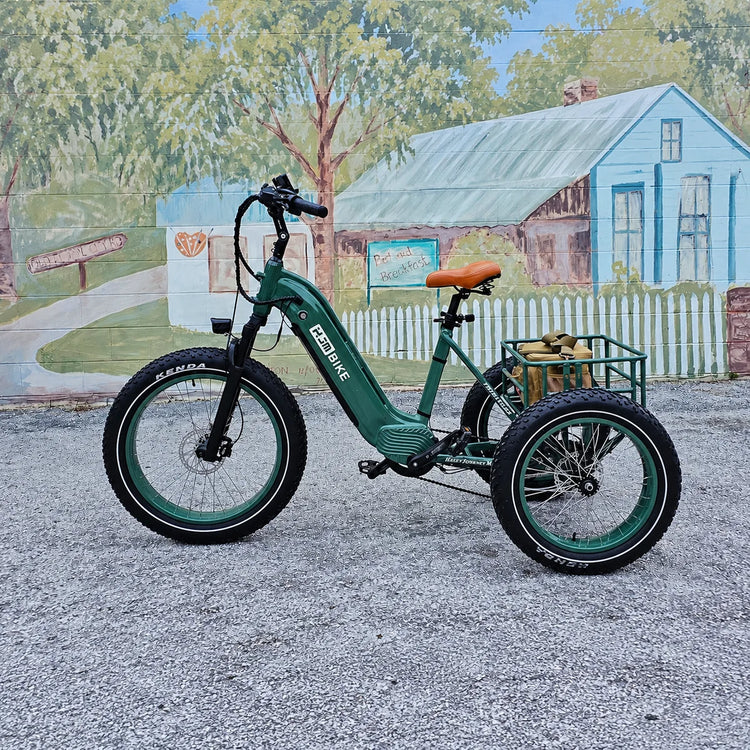

How does Bafang power support your everyday ride?
Bafang motors provide electric assistance for daily riding and carrying essentials. T2 and T4 rear-drive models use torque-sensing assist that responds to your pedaling effort. T3 uses speed-sensing assist with a front-hub motor, giving you another way to ride with less effort.

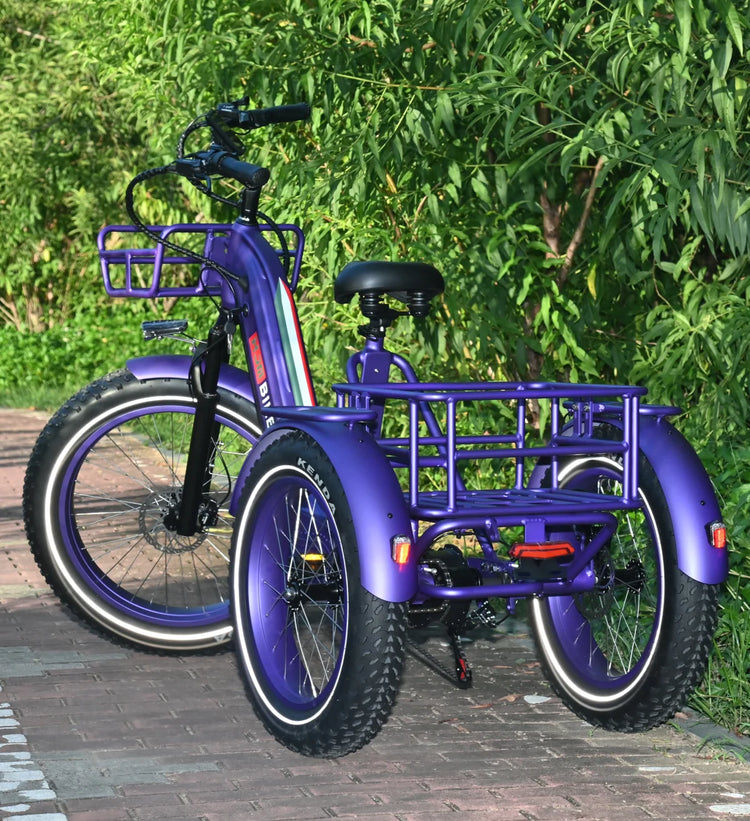

What helps you brake, park and stay visible?
Hydraulic disc brakes provide responsive stopping. Like a handbrake, parking locks help hold the trike in place during loading or when parked on uneven ground or slopes. Reflective tire sidewalls return light from headlights, helping you stand out from the side at dusk and after dark.

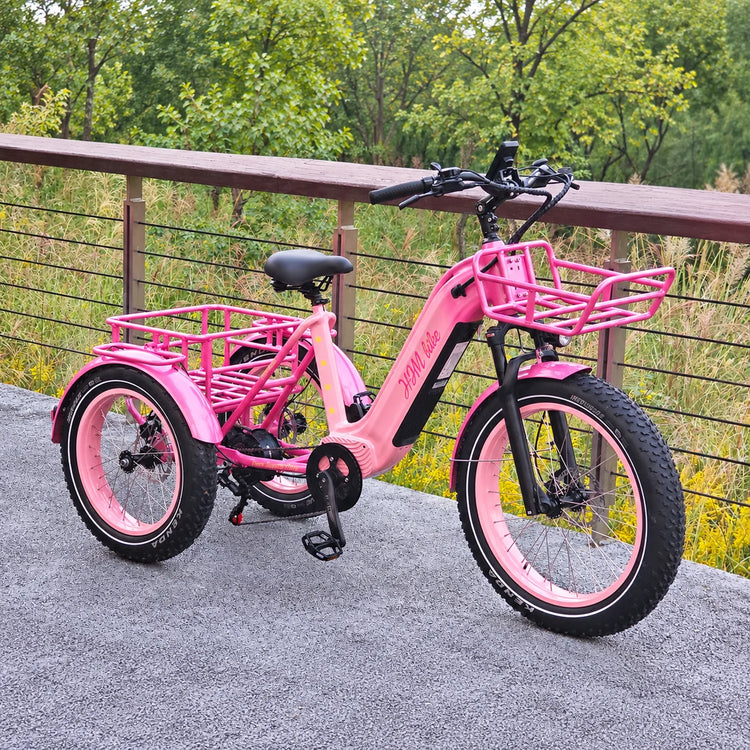

How does the differential support smoother turns?
The rear differential lets the two rear wheels rotate at different speeds through a turn. This helps the wheels follow their own paths for smoother cornering on your daily route. Built for daily journeys and off-road outings, this adult electric tricycle brings cargo-carrying utility beyond paved streets.
Specifications
| Motor Options | T2: 48V 750W Bafang Rear Drive T3: 48V 750W Bafang Front Hub T4: 48V 1000W Bafang Rear Drive |
||
| 750W Motor Peak Power & Max Torque | 1026W 76.2 Nm | 1000W Motor Peak Power & Max Torque | 1227W 85.8 Nm |
| Battery | UL-Certified 48V 20Ah (960Wh) Battery with LG Cells | Optional Second Battery | T2 / T4: 48V 20Ah (960Wh) T3: 48V 17.5Ah (840Wh) |
| Throttle | Thumb Throttle | Pedal Assist | 5 levels. T2 / T4: torque sensor. T3: speed sensor. |
| Charger | 48V 3A Charger | USB Port | 5V USB Charging Port |
| Gearing | Shimano 6-Speed Freewheel (14–34T) | Chain | KMC C7NP Chain |
| Brakes | GEMMA Hydraulic Disc Brakes | Frame | 6061 Aluminum Alloy Frame |
| Fork | Aluminum Alloy Suspension Fork | Suspension | Front Suspension |
| Handlebar | Custom-Formed Aluminum Alloy Handlebar | Seat Post | Promax Seatpost |
| Saddle | Comfort Saddle with Leather Cover | Pedals | VP Aluminum Alloy Platform Pedals |
| Tires | Front: 24" × 4.0" / Rear: 20" × 4.0" Kenda All-Terrain Tires with Reflective Sidewalls and Puncture Protection | Rims | Star Circle Alloy Rims, 36H |
| Spokes | 13-Gauge Stainless Steel Spokes | Headlight | High-Brightness LED Headlight — 226 Lux at 5 Meters |
| Rear Brake Light | Central Rear Taillight with Integrated Brake Light | Turn Signals | Turn Signals Integrated into the Central Rear Taillight |
| Fenders | Color-Matched Aluminum Alloy Front and Rear Fenders | Rider Height | 5'0" (152 cm) and Above — T2 / T3 / T4 |
| Payload Capacity | 480 lbs | Trike Weight | 95.5 LBS / 109.3 LBS |
* Regulatory notice: Vehicle rules vary by location and motor configuration. Check local requirements before riding on public roads or public-use areas.
Dimensions
Recommended Rider Height: 5'0" (152 cm) and above for T2, T3 and T4.
| A | Handlebar Height 44.9" |
| B | Total Length 73.6"(TriHauler)/ 76.8"(TriHauler pro) |
| C | Wheelbase 44.5" |
| D | Wheel Size 24" x 4.0" |
| E | Seat Height 33.6"-41.4" |
| F | Stand Over Height 16.9" |
| G | Chain Stay Length 19.7" |
| H | Rear Rack 15.3" |
| I | Handlebar Reach 17.3" |
| J | Head Tube 6.5" |
| K | Seat Tube Length 17.3" |
| L | Wheel Size 20" x 4.0" |
| Width | Tricycle Width 30.4"(TriHauler)/ 31.3"(TriHauler pro) |
| Rear basket size (inner) | 17.2" x 14.2" x 7.9" |
| Front basket size | 14.9" x 14.2" x 6.2" |

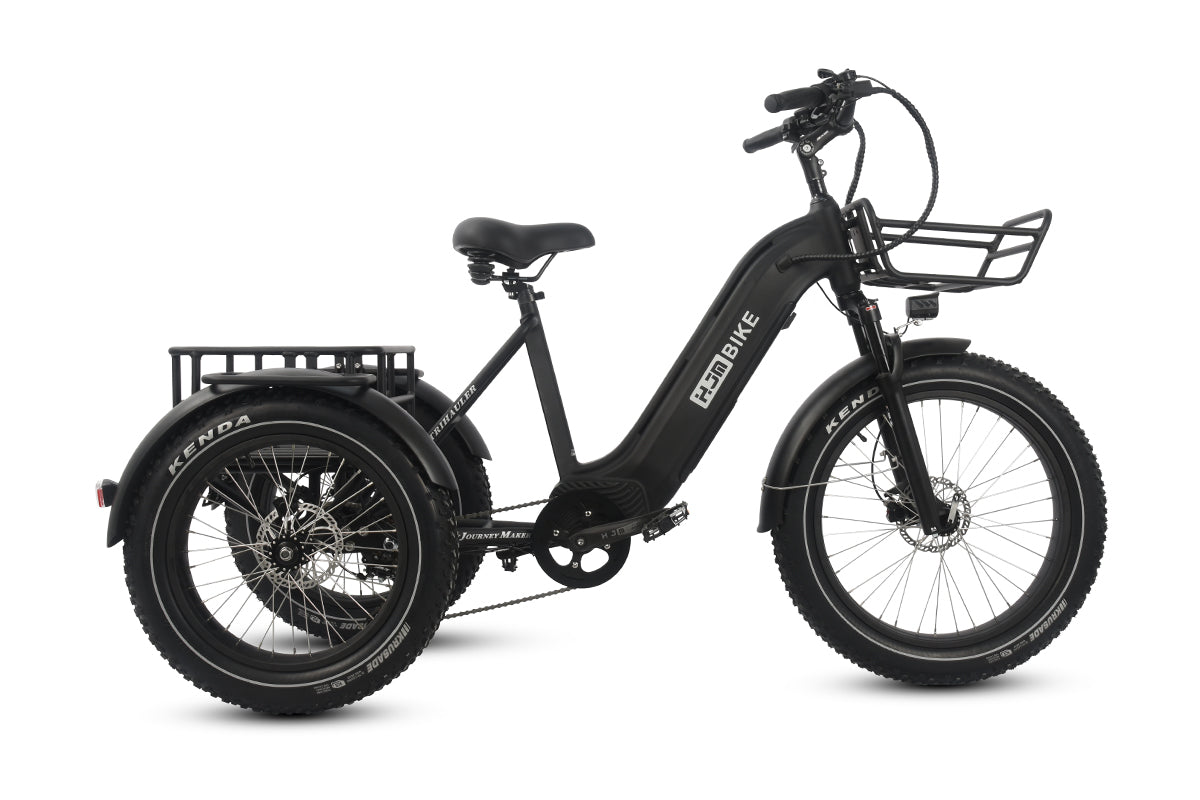

Components
Shimano 6-speed gearing
The Shimano 6-speed freewheel uses a 14–34T range. Select a gear appropriate for your pace and riding conditions.
GEMMA hydraulic disc brakes
The 160 mm disc brake system combines hydraulic braking with motor cutoff, providing responsive braking and heat dissipation to significantly shorten braking distance.
Kenda all-terrain fat tires
The 24 × 4-inch front tire and 20 × 4-inch rear tires feature puncture protection and reflective sidewalls.
KMC rust-proof chain
The KMC C7NP chain is rust-proof and designed to withstand extreme weather conditions, including salt, high humidity, snow and heavy rain.
Comfort saddle
A leather-covered comfort saddle supports the upright riding position.
Rear lighting and turn signals
The central rear taillight integrates brake-light and turn-signal functions.
Speed Shift System
Hydraulic Brake
All Terrain Tire
Rust-Proof Chain
Saddle
Functional Tail Light
Shimano 6-speed gearing
The Shimano 6-speed freewheel uses a 14–34T range. Select a gear appropriate for your pace and riding conditions.
GEMMA hydraulic disc brakes
The 160 mm disc brake system combines hydraulic braking with motor cutoff, providing responsive braking and heat dissipation to significantly shorten braking distance.
Kenda all-terrain fat tires
The 24 × 4-inch front tire and 20 × 4-inch rear tires feature puncture protection and reflective sidewalls.
KMC rust-proof chain
The KMC C7NP chain is rust-proof and designed to withstand extreme weather conditions, including salt, high humidity, snow and heavy rain.
Comfort saddle
A leather-covered comfort saddle supports the upright riding position.
Rear lighting and turn signals
The central rear taillight integrates brake-light and turn-signal functions.
TriHauler Estimated Riding Range
| Battery | Pedal Assist | Throttle Only | ||||
|---|---|---|---|---|---|---|
| PAS 1 | PAS 2 | PAS 3 | PAS 4 | PAS 5 | ||
| Single Battery(20Ah) Range | 141 Miles | 87 Miles | 70 Miles | 47 Miles | 31 Miles | 30 Miles |
| Dual Battery(20Ah+17.5Ah) Range | 264 Miles | 162 Miles | 132 Miles | 88 Miles | 59 Miles | 57 Miles |
| Dual Battery(20Ah+20Ah) Range | 282 Miles | 174 Miles | 140 Miles | 94 Miles | 62 Miles | 60 Miles |
Pedal Assist
| Level | 20Ah | 37.5Ah Dual | 40Ah Dual |
|---|---|---|---|
| PAS 1 | 141 Miles | 264 Miles | 282 Miles |
| PAS 2 | 87 Miles | 162 Miles | 174 Miles |
| PAS 3 | 70 Miles | 132 Miles | 140 Miles |
| PAS 4 | 47 Miles | 88 Miles | 94 Miles |
| PAS 5 | 31 Miles | 59 Miles | 62 Miles |
Throttle Only
| 20Ah | 30 Miles |
|---|---|
| 37.5Ah Dual | 57 Miles |
| 40Ah Dual | 60 Miles |
*The above data is calculated based on a load of 165lbs, zero wind resistance, and a temperature of 25°C, with no uphill conditions.
TriHauler FAQs
How much setup does a TriHauler require on delivery?
The wheels and pedals arrive installed. Secure the handlebars according to the supplied instructions, then complete the pre-ride checks before riding.
What is the difference between the TriHauler T2, T3 and T4?
T2 uses a 750W rear-drive motor, T3 a 750W front-hub motor, and T4 a 1000W rear-drive motor. T2 and T4 use torque sensors; T3 uses a speed sensor. Each model offers single- and dual-battery options, with colors shown for the selected motor.
What battery capacities are available for each TriHauler model?
All three models offer a single 20Ah battery. The dual-battery T3 combines 20Ah and 17.5Ah batteries for a total of 37.5Ah. The dual-battery T2 and T4 combine two 20Ah batteries for a total of 40Ah.
What rider height does the TriHauler electric trike fit?
The TriHauler T2, T3 and T4 are recommended for riders 5'0" (152 cm) and taller. All three models have the same height. Saddle height and handlebar reach also affect individual fit; see Specifications & Dimensions for measurements.
What return window and core-component warranty apply?
Eligible returns must be requested within 15 calendar days of delivery with no more than 10 miles of use. Approval, original packaging, product condition and applicable fees apply. Eligible core components are covered for 2 years or 1,500 miles, whichever comes first. The full shipping, return and warranty policies govern eligibility and exclusions.
Is riding a trike the same as riding a bicycle?
A trike handles differently from a two-wheel bicycle. Read your model’s manual and practice starting, stopping, and turning in a clear area before regular use. Slow down before turns and follow the load limits. Three wheels do not make a trike tip-proof.
How far can I ride on a charge?
Range depends on battery capacity, assist level, speed, hills, rider and cargo weight, temperature, and tire pressure. Use the range table and its reference conditions as a guide rather than a guarantee.
