Bafang Geared Hub Motor
1000W(peak 1270W/ 90Nm)
48V 20Ah
UL-certified LG Battery
26x4"
Fat Tire
Up to 80Miles
Estimated Range
350lbs
Maximum Load
28Mph
Maximum Speed
Warrior Full Suspension All Terrain eBike
D4AT16
$1,299.00
| Save $1,690 (57%)
Free Shipping
15 Day Returns
Warranty Terms
1000W(peak 1270W/ 90Nm)
Bafang Geared Hub Motor
48V 20Ah
UL-certified LG Battery
26x4"
Fat Tire
Up to 80Miles
Estimated Range
350lbs
Maximum Load
28Mph
Maximum Speed
Add to cart

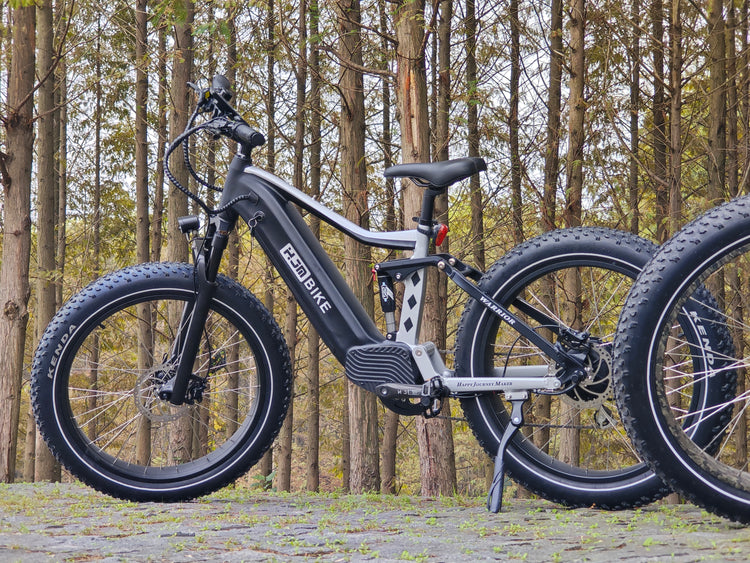

Electric Mountain Bike. Everyday Freedom.
Bring MTB character to your outdoor rides. The Warrior electric mountain bike combines fat tires and dual suspension for gravel paths, forest routes and scenic detours.
Make Every Ride an Escape
Turn a familiar route into time well spent outdoors. Enjoy electric assistance on daily rides, weekend outings and the scenic way home, with distinctive finishes that make Warrior your own.

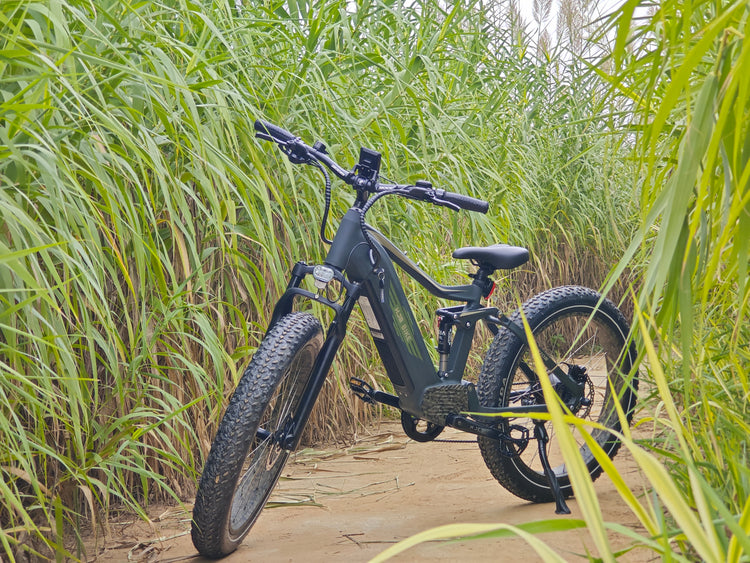

Choose Your Kind of Assistance
Warrior offers cadence-based pedal assistance for relaxed riding. Choose Warrior Pro for torque-sensing assistance that responds to your pedaling effort, with the same adventurous full suspension character.
Full Suspension. More Riding Comfort.
Front and rear suspension work together to soften bumps and reduce vibration. Enjoy the comfort of a full suspension eMTB on uneven paths, gravel routes and everyday rides.
Power for the Road Ahead
Bafang motor assistance helps you get moving and keep pedaling when the route climbs. Pair electric power with the Shimano gearing to find a comfortable rhythm through changing terrain.
More Energy for Your Day
The integrated LG-cell battery keeps the frame streamlined while supplying energy for everyday trips and longer outings. Plan your ride with the range estimates below and choose the assistance level that suits your route.
Technical Specification
| Battery | UL-certified 48V 20Ah (960Wh) LG cells. | Brake calipers | Logan hydraulic brakes |
| Motor | 48V 1000W Bafang Geared Hub Motor | Chain | KMC C7NP |
| USB ports | 5V | Fork | Aluminum Alloy Integrated suspension front fork |
| Headlight | 45LUX | Frame | 6061 aluminum alloy |
| Tail Light | Integrated light | Freewheel | Shimano 7-speed freewheel 14-34T |
| Spokes | 12-gauge stainless steel | Handlebars | Custom formed aluminum |
| Charger | 48V3A | Kickstand | Single-leg aluminum alloy |
| Pedal Assist | Intelligent 5 level pedal assists | Pedals | VP aluminum alloy mountain type |
| Recommended Rider Height | Above 5'7'' | Rims | Alloy, Star Circle, 36H |
| Total Payload Capacity | 350 lbs | Saddle | Leather comfort seat |
| N.W. | 77.2 lbs | Seat post | Promax ∮31.8*350MM |
| Tires | 26x4.0 Kenda all-terrain Tires with reflective patches and puncture-proof | Throttle | Thumb throttle |
| Suspension | Full suspension (F: 100mm/ R: 50mm) | Sensor | Cadence sensor(Warrior)/ Torque sensor(Warrior Pro) |
*Regulatory notice: Vehicle rules vary by location and motor configuration. Check local requirements before riding on public roads or public-use areas.
Warrior Dimensions
| A | Handlebar Height 41.3" |
| B | Total Length 76.3" |
| C | Wheelbase 47.6" |
| D | Wheel Size 26" x 4.0" |
| E | Seat Height 34.3"-38.6" |
| F | Stand Over Height 30.3" |
| G | Chain Stay Length 25.2" |
| I | Handlebar Reach 18" |
| J | Head Tube 5.5" |
| K | Seat Tube Length 19.3" |
Premium Brand Components
Shimano 7-Speed Gearing
Choose a comfortable pedaling rhythm as the route changes. Shimano gearing lets you shift between easier climbing gears and a higher gear for steady cruising.
Responsive Hydraulic Braking
Hydraulic disc brakes give you braking control for everyday rides and outdoor routes. Check the brakes before each ride and follow the maintenance guidance in your owner’s manual.
Kenda Fat Tires
Wide Kenda tires add cushioning and a planted feel on pavement and gravel. Set tire pressure for the rider, load and terrain within the tire’s marked limits.
KMC Chain
The KMC chain connects your pedal power to the rear wheel. Keep it clean, lubricated and correctly adjusted for smooth shifting and everyday reliability.
Comfort for Everyday Miles
A cushioned saddle supports a comfortable riding position. Adjust the saddle height and position to suit your fit before heading out.
Rear Suspension for a Smoother Ride
The rear shock works with the front fork to soften bumps and reduce vibration on uneven routes. Follow the setup guidance for your suspension and riding conditions.
Speed Shift System
Hydraulic Brake
All Terrain Tire
KMC Chain
Saddle
Rear Suspension
Shimano 7-Speed Gearing
Choose a comfortable pedaling rhythm as the route changes. Shimano gearing lets you shift between easier climbing gears and a higher gear for steady cruising.
Responsive Hydraulic Braking
Hydraulic disc brakes give you braking control for everyday rides and outdoor routes. Check the brakes before each ride and follow the maintenance guidance in your owner’s manual.
Kenda Fat Tires
Wide Kenda tires add cushioning and a planted feel on pavement and gravel. Set tire pressure for the rider, load and terrain within the tire’s marked limits.
KMC Chain
The KMC chain connects your pedal power to the rear wheel. Keep it clean, lubricated and correctly adjusted for smooth shifting and everyday reliability.
Comfort for Everyday Miles
A cushioned saddle supports a comfortable riding position. Adjust the saddle height and position to suit your fit before heading out.
Rear Suspension for a Smoother Ride
The rear shock works with the front fork to soften bumps and reduce vibration on uneven routes. Follow the setup guidance for your suspension and riding conditions.
Warrior Estimated Riding Range
| Battery | Pedal Assist | Throttle Only | ||||
|---|---|---|---|---|---|---|
| PAS 1 | PAS 2 | PAS 3 | PAS 4 | PAS 5 | ||
| 48V 20Ah | 141 Miles | 80 Miles | 63 Miles | 38 Miles | 28 Miles | 27 Miles |
Pedal Assist
| Level | 48V 20Ah |
|---|---|
| PAS 1 | 141 Miles |
| PAS 2 | 80 Miles |
| PAS 3 | 63 Miles |
| PAS 4 | 38 Miles |
| PAS 5 | 28 Miles |
Throttle Only
| 48V 20Ah | 27 Miles |
|---|
*The above data is calculated based on a load of 165lbs, zero wind resistance, and a temperature of 25°C, with no uphill conditions.
Find more reasons to get outside. The HJM Warrior is a full suspension electric mountain bike that brings together a Bafang motor, an integrated LG-cell battery and wide fat tires. From everyday rides to recreational off-road routes, this dual suspension e-bike gives you more ways to explore. Choose Warrior or Warrior Pro, find your favorite finish and make the journey part of your day.
Warrior frequently asked questions
What is the difference between Warrior and Warrior Pro?
Warrior uses a cadence sensor for pedal assistance. Warrior Pro uses a torque sensor that responds to how hard you pedal. Both models have full suspension, a Bafang motor and fat tires. Select your preferred model above to see available options.
Is Warrior a full suspension electric mountain bike?
Yes. Warrior is a fat tire electric mountain bike, also called an electric MTB or eMTB. Its full suspension system combines a front suspension fork and a rear shock. This is also called dual suspension or front and rear suspension, helping absorb bumps and reduce vibration on uneven routes.
What kind of riding is Warrior suited for?
Warrior is a full suspension fat tire e-bike for everyday rides and recreational off-road routes, including gravel and uneven paths. Choose a route that matches your skills and the riding guidance in the owner’s manual.
How do I check whether Warrior fits me?
Compare your height and inseam with the Warrior Dimensions above, especially standover height and saddle height. Contact our U.S. support team if you would like help choosing your fit.
How far can I ride on a charge?
See the riding range table above for estimates and reference conditions. Actual range depends on assistance level, speed, terrain, rider and cargo weight, temperature and tire pressure.
How do I prepare my Warrior for the first ride?
Watch the unboxing video above, follow the included setup instructions and complete the pre-ride checks. Contact HJM support if you need help getting started.
Where can I buy replacement parts?
Order compatible parts from our replacement parts collection when listed. For an unlisted part, contact our U.S. support team to confirm compatibility and availability. Special orders may be available for out-of-stock parts; timing is confirmed before ordering.
