Bafang Geared Hub Motor
750W(peak 1000W)
48V 20Ah
LG Battery
24x4"
26x4"
Fat Tire
Up to 80Miles
Average Range
350lbs
Maximum Load
28Mph
Maximum Speed
Joyrider Fat Tire Utility eBike
A3HT1
$900.00
| Save $499 (36%)
Free Shipping
15 Day Returns
Warranty Terms
750W(peak 1000W)
Bafang Geared Hub Motor
48V 20Ah
LG Battery
24x4"
26x4"
Fat Tire
Up to 80Miles
Average Range
350lbs
Maximum Load
28Mph
Maximum Speed
Add to cart

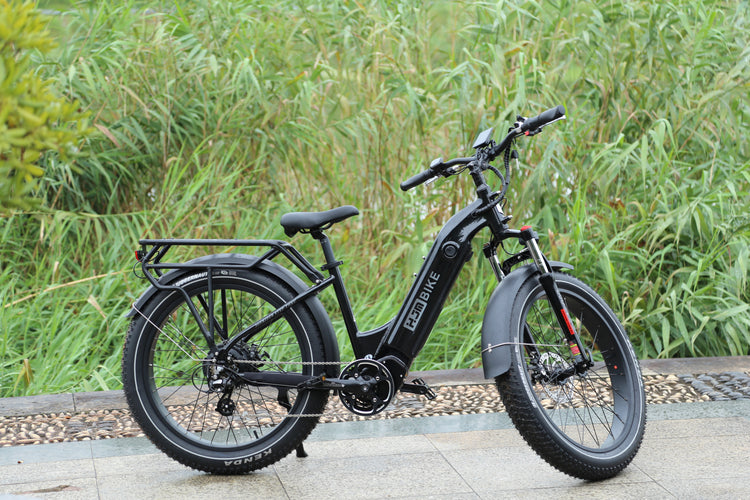

Easy Access for Everyday Adventures
The Joyrider Step-Through pairs a low frame opening with fat tires for relaxed outings and everyday trips. Get on and off more easily and find your fit using the dimensions above.

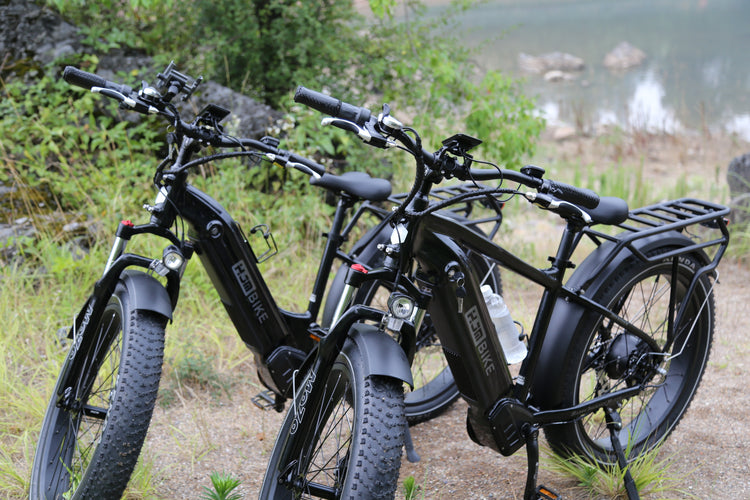

Two Frame Styles. One Shared Journey.
Choose High-Step or Step-Through to suit your preferred fit. Joyrider brings both frame options together for riders planning daily commutes, weekend outings or time outdoors together.

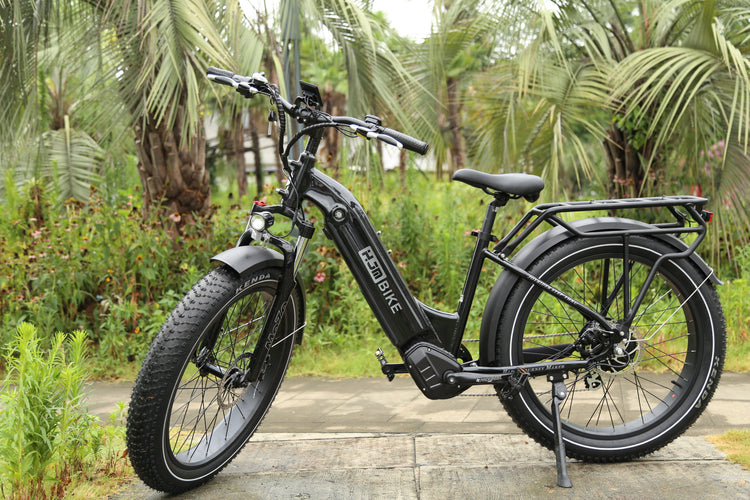

Take the Scenic Route
Make room for leisurely neighborhood rides and recreational paths. Front suspension and wide tires help soften everyday bumps so you can enjoy more of the journey.

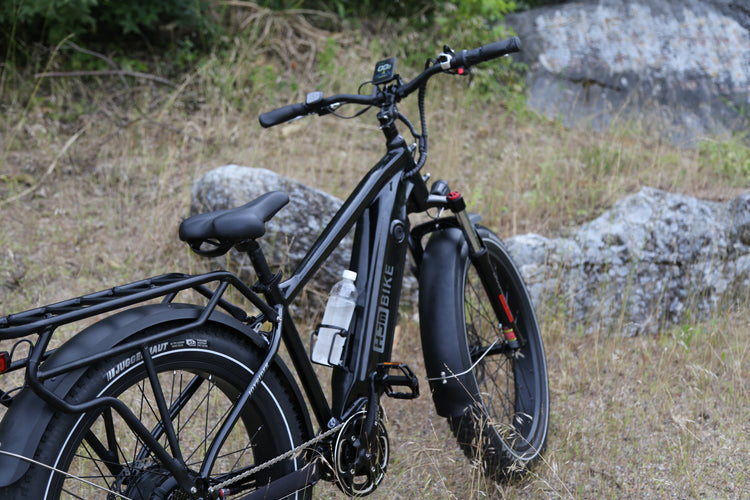

Bring More of Your Day
An included rear rack and full fenders add useful practicality to this fat tire utility e-bike. Fit compatible bags for everyday essentials and keep cargo within the bike and rack load limits.

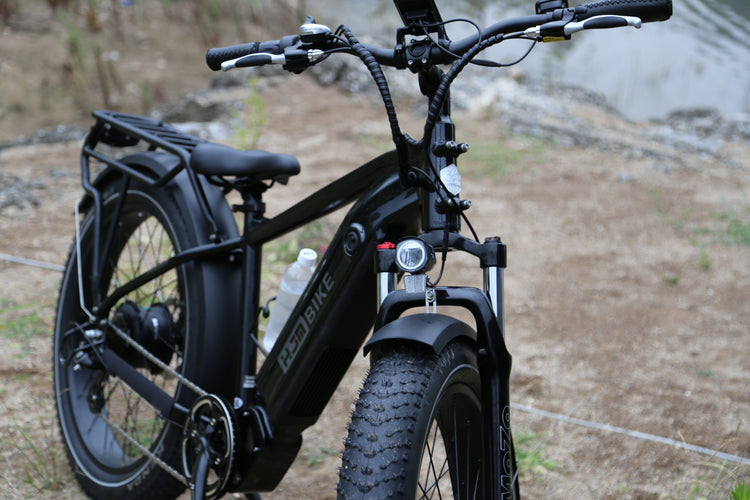

Find Your Everyday Rhythm
Electric assistance and Shimano gearing work together for comfortable pedaling as your route changes. Select the configuration above to see its matching components.

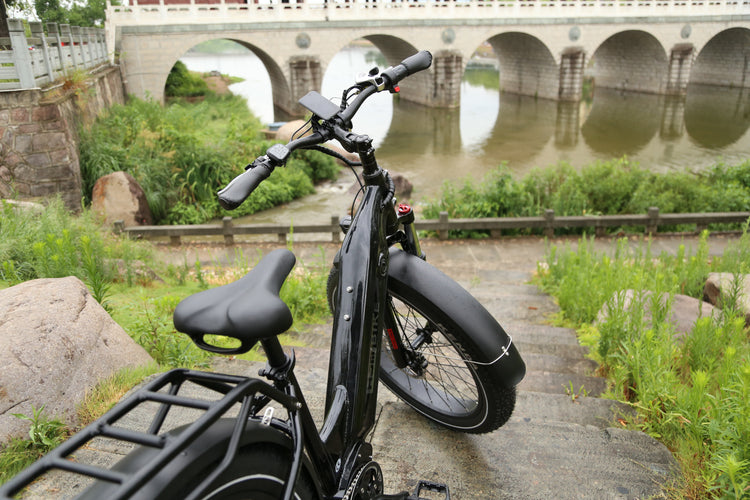

A Fresh Reason to Get Outside
From familiar streets to riverside outings, Joyrider is an everyday electric bike that encourages you to explore. Choose suitable routes, settle into your own pace and enjoy the view.
Technical Specification
| Motor | 48V 750W Bafang Rear Hub Motor | Battery | UL-Certified 48V 20Ah (960Wh) Battery with LG Cells |
| Throttle | Thumb Throttle / Half Twist Throttle (A3HT7) | Pedal Assist | Intelligent 5-Level Pedal Assist System (PAS) |
| Charger | 48V 3A Smart Charger | USB Charging Port | 5V USB Output |
| Gearing | Shimano 7-Speed (14-34T Freewheel) | Chain | KMC C7NP Chain |
| Brakes | Logan Hydraulic Disc Brakes / Tektro Mechanical Disc Brakes (A3HT7) | Frame | 6061 Aluminum Alloy Frame |
| Fork | Aluminum Alloy Suspension Fork | Suspension | Front Suspension |
| Handlebar | Custom-Formed Aluminum Handlebar | Seat Post | Promax Alloy Seat Post |
| Saddle | Comfort Leather Saddle | Pedals | VP Aluminum Alloy Mountain Pedals |
| Kickstand | Aluminum Alloy Kickstand | Tires | Kenda 26x4.0 / 24x4.0 Anti-Puncture Fat Tires with Reflective Stripe |
| Rims | Alloy Star Circle Rims, 36H | Spokes | 12-Gauge Stainless Steel Spokes |
| Headlight | 45 Lux LED Front Headlight | Taillight | Integrated Rear Brake Taillight |
| Fenders | Black Aluminum / PVC Fenders (A3HT7) | Rider Height | High-Step: 5'5"–6'2" / Step-Through: 5'2"–6'9" |
| Payload Capacity | Up to 350 lbs | Bike Weight | 72.8 lbs |
| Shipping Weight | 96.6 lbs |
*Regulatory notice: Vehicle rules vary by location and motor configuration. Check local requirements before riding on public roads or public-use areas.
Joyrider Dimensions
| A | Handlebar Height 44.1" |
| B | Total Length 76" |
| C | Wheelbase 47.2" |
| D | Wheel Size 26" x 4.0" |
| E | Seat Height 31.5"-40.6" |
| F | Stand Over Height 28.7" |
| G | Chain Stay Length 20.9" |
| H | Rear Rack 20" |
| I | Handlebar Reach 18" |
| J | Head Tube 6.7" |
| K | Seat Tube Length 17.7" |
Joyrider Estimated Riding Range
| Battery | Pedal Assist | Throttle Only | ||||
|---|---|---|---|---|---|---|
| PAS 1 | PAS 2 | PAS 3 | PAS 4 | PAS 5 | ||
| STANDARD RANGE | 141 Miles | 87 Miles | 70 Miles | 47 Miles | 31 Miles | 30 Miles |
STANDARD RANGE
| PAS 1 | 141 Miles |
|---|---|
| PAS 2 | 87 Miles |
| PAS 3 | 70 Miles |
| PAS 4 | 47 Miles |
| PAS 5 | 31 Miles |
| Throttle Only | 30 Miles |
*The above data is calculated based on a load of 165lbs, zero wind resistance, and a temperature of 25°C, with no uphill conditions.
Joyrider is a fat tire electric bike for recreational routes and everyday exploring. Choose paths that suit your experience and the conditions. From neighborhood errands to the daily commute, electric assistance helps make familiar journeys feel easier. Choose your frame option for the fit you prefer.
Joyrider frequently asked questions
What makes Joyrider different?
Joyrider is a fat tire electric bike for recreational routes and everyday exploring. Choose paths that suit your experience and the conditions.
What kind of suspension does it have?
This model uses front fork suspension and a rigid rear frame. It is a hardtail electric bike, rather than a full suspension e-bike.
How do I choose the right fit?
Compare the dimensions above with your height and inseam. Check the selected frame and configuration before ordering. Contact our support team if you need help confirming the fit.
How far can I ride on a charge?
Use the estimated riding range and reference conditions above. Actual range varies with assistance level, speed, hills, rider and cargo weight, temperature and tire pressure.
Where can I find accessories and replacement parts?
Browse our accessories and replacement parts, or contact our support team to confirm compatibility with your selected model.
