750W(peak 1000W)

Bafang Front hub motor

48V 20Ah

UL-certified LG Battery

F:24x4", R:20x4"

Fat Tire

Up to 80Miles

Average Range

480lbs

Maximum Load

20Mph

Maximum Speed

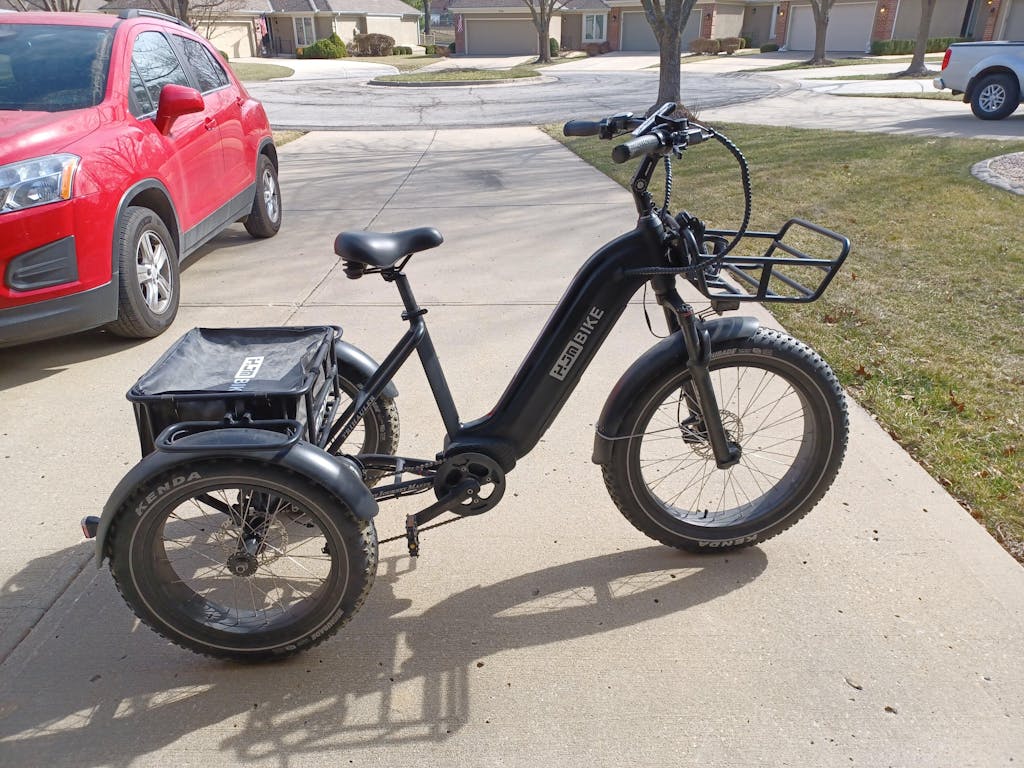

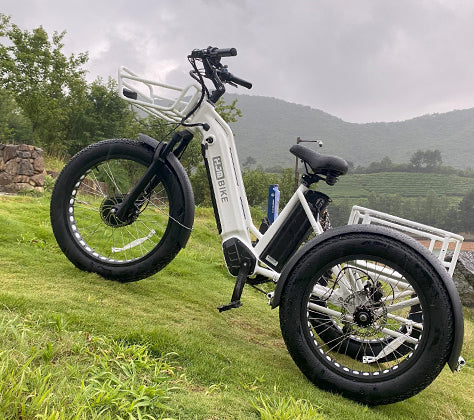

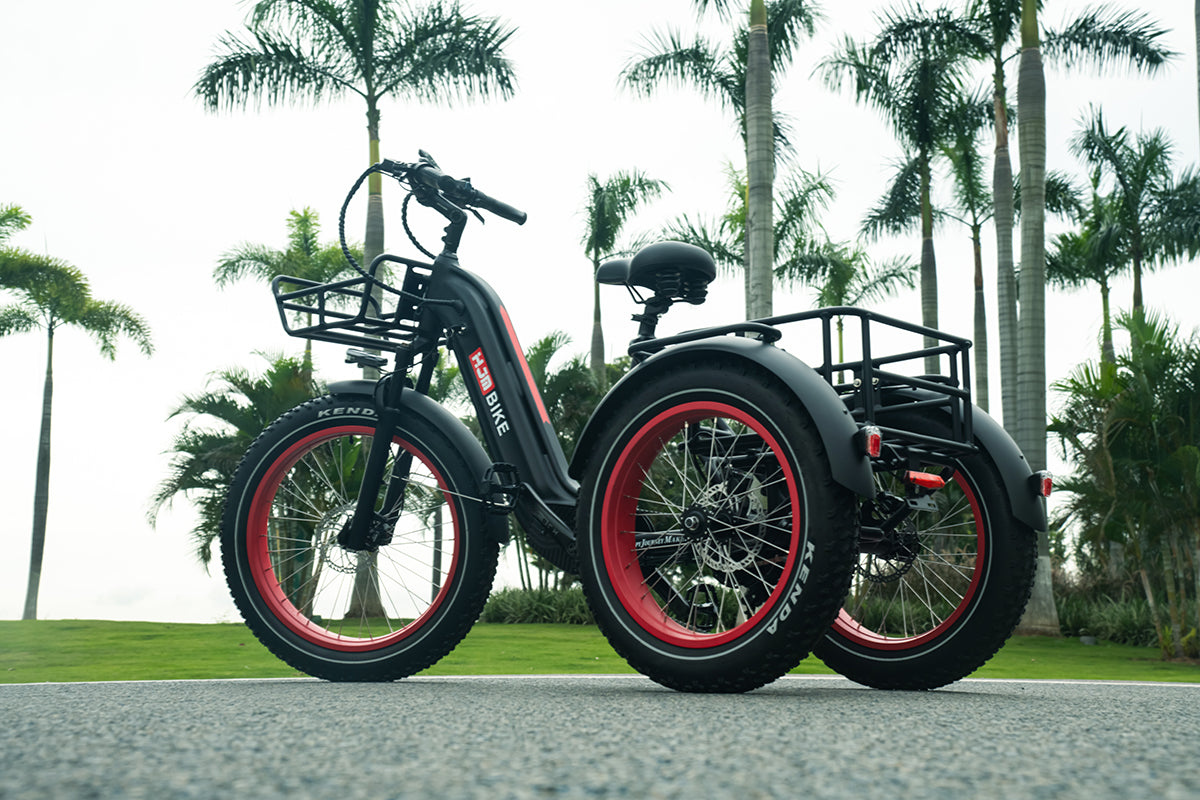

TriHauler Cargo Fat Tire Etrike (Fully Assembled)

T3LJ1
$1,999
| Save $1,000 (33%)

color :
Midnight Black
Arctic White
Sunset Orange
Hunter Green
Arctic White - Limited Edition
Sunrise Yellow
Passionate Black
Graphite Gray
battery capacity :

Usually ships within 2-3 business days.

Free Accessories Included: Front and Rear Baskets & Full Fenders.

运输

Free Shipping

Shipping Time

HJMBIKE will process the order in 1-2 business days.

The whole delivery takes 5-10 business days. It may be influenced by different reason.

Shipping Fee

HJMBIKE offers free shipping for orders over $69.

Shipping Notification

After the order is shipped, you will receive a notification email.

退货无忧 15days

15 Day Returns

Return Policy

HJMBIKE offers trial ride for any e-bike risk-free for 15 days or 10-miles. You must contact HJMBIKE within fourteen (14) days of your receipt of the e-bike, and the e-bike must have less than 10 miles on the odometer.

To return an ebike that is not defective or damaged, the ebike must be free of any wear and tear, dirt, dust, fragrance, or any other signs of use and must be in the same packaging and condition that you receive it and must include all items that were inside the box (charger, keys, hardware, etc.).

You need to afford the shipping cost of returning the e-bike

Refund Policy

The entire discount code value will be subtracted from the refund value for any items returned on orders with discount codes, whether you return one e-bike or more e-bikes.

Refunds will be made upon receipt and inspection of the e-bike.

185认证、盾牌、安全、保障、质保-线性

2-Year Warranty

Warranty

This warranty is only apply to the original owner and can’t be transferred to any subsequent owner or user. The original owner refers to the buyer on HJMBIKE website.

The limited warranty applies only to replacement and/or repair of a lithium ion battery, frame, forks, stem, handlebar, seat post, saddle, brakes, lights, crank set, pedals, rims, wheel hub, freewheel, derailleur, shifter, motor, throttle, controller, wiring harness, LCD display, kickstand and reflectors in case of manufacturer defects in materials and/or workmanship, and subject to any and all exclusions, limitations, and procedures explained below.

Warranty Exclusion

The battery warranty does not include damage from power surges, use of improper charger, improper maintenance or other misuse, normal wear or water damage.

Accidents or other circumstances beyond the control of the manufacturer.

Damage or defects resulting from failure to follow instructions in the owner’s manual.

Repairs by third parties or repairs in a workshop not authorized by the manufacturer Natural wearand tearparts, including without limitation tires, tubes, brake pads, cables and housing, grips, chain and spokes.

The serial number of e-bike frame has been changed, removed or made illegible.

The warranty claimedby anyone other than the original buyer.

Other conditions not listed here but not covered by warranty.

750W(peak 1000W)

Bafang Front hub motor

48V 20Ah

UL-certified LG Battery

F:24x4", R:20x4"

Fat Tire

Up to 80Miles

Average Range

480lbs

Maximum Load

20Mph

Maximum Speed

Add to cart

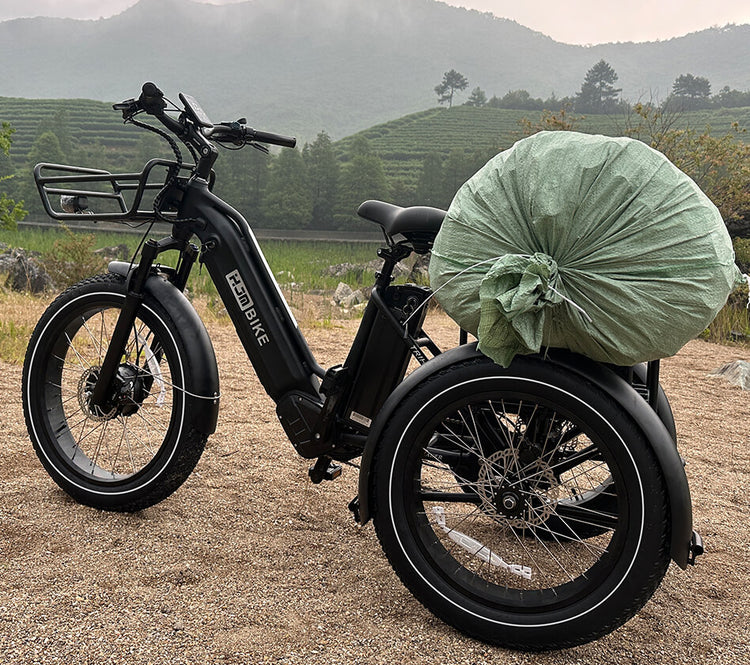

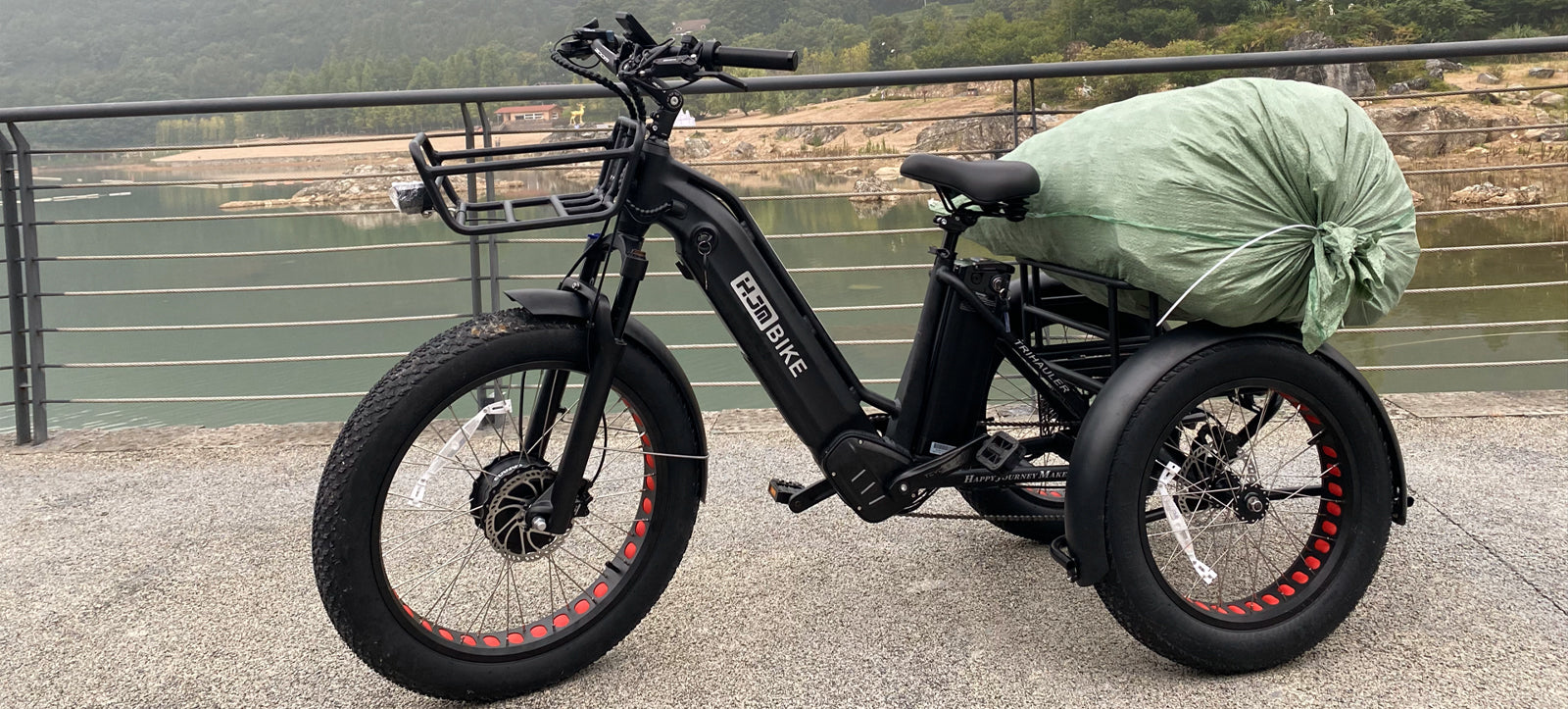

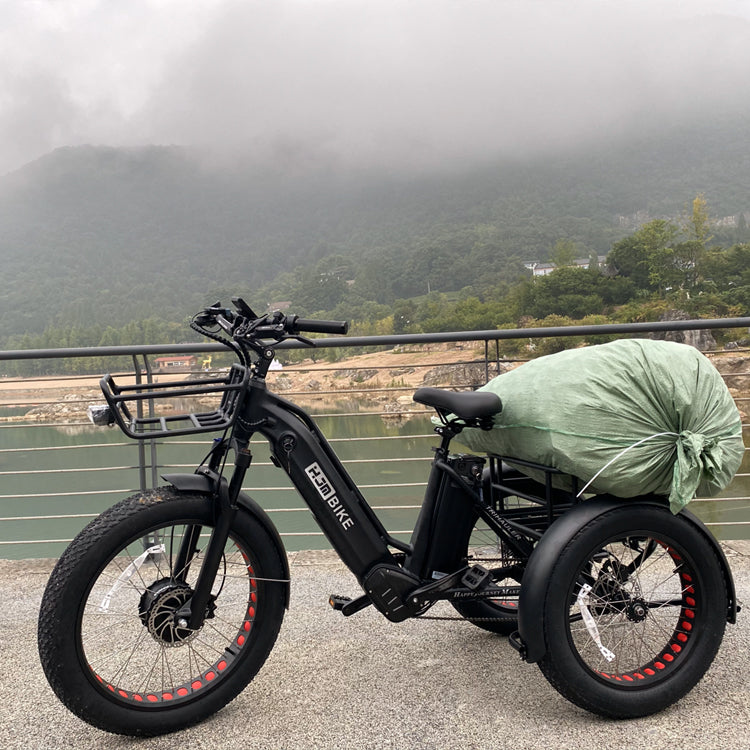

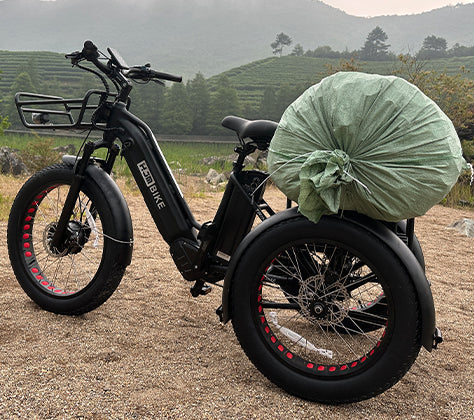

Effortless Hauling

TriHauler Cargo Electric Trike is specifically designed with a large cargo container to transport groceries, packages, equipment, or other goods, making it ideal for businesses requiring efficient logistics or delivery services. Cargo eTrike also provides a flexible and agile transportation solution, enabling access to areas that may pose challenges for cars such as such as congested urban areas, farm fields, rugged terrains, and forested areas.

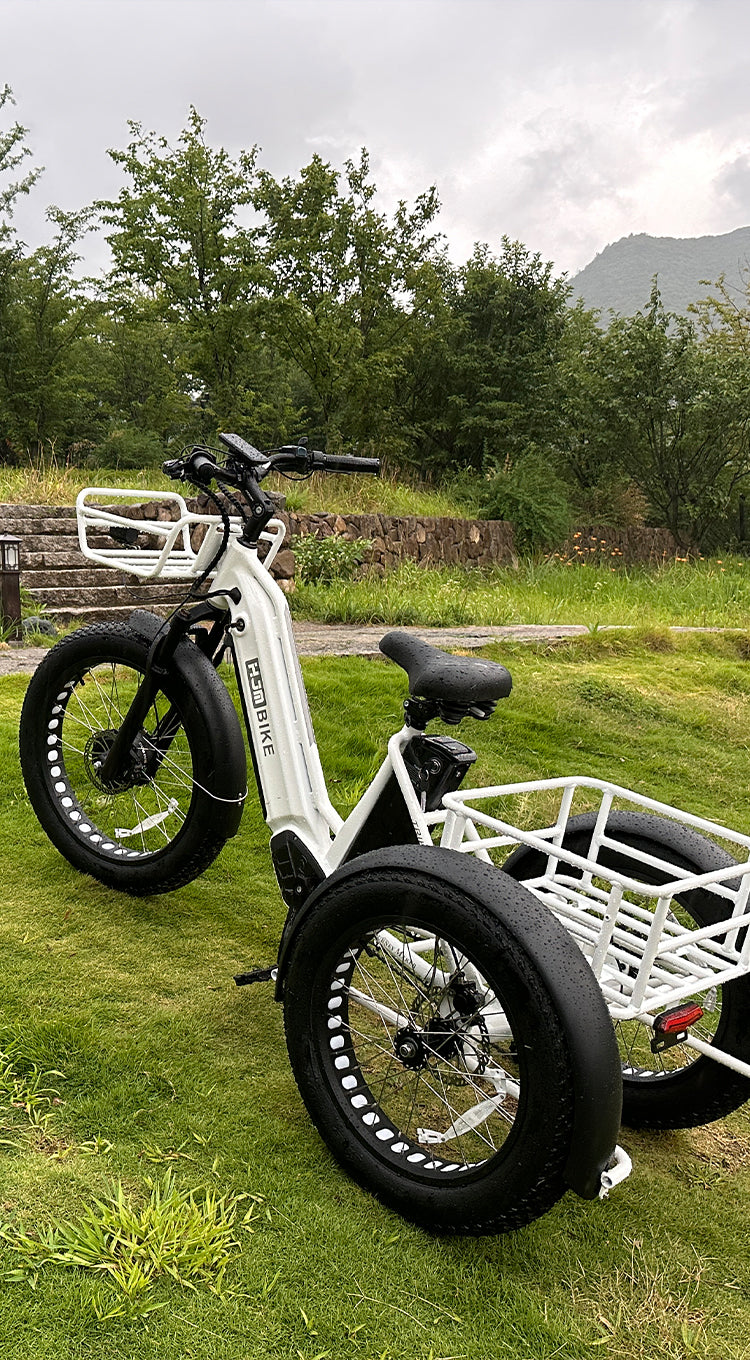

Ride with Confidence

The three-wheel and step-through frame design of TriHauler offers enhanced stability and balance compared to traditional eBike. This feature can be particularly beneficial for seniors who may have concerns about maintaining balance while riding. The extra wheel provides increased support, reducing the risk of falls and making it easier to ride confidently.

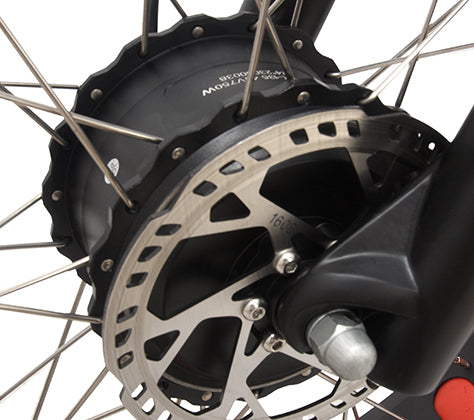

750W Bafang Front Hub Motor

Fast peak torque output and good acceleration performance without frustration even in the climbing. The throttle response quickly, which makes the rider enjoy the speed and freedom better. The new battery module design and BMS keep the battery charging and discharging stable even in extreme environments. It is convenient to bring home or office to recharge with removable feature design.

Park with Grace

With a simple press of a button, you activate the pinnacle of convenience and safety. Whether it's a quick pit stop or extended parking, our TriHauler parking system guarantees a seamless experience. The brake locking on both the front and rear wheels enhances overall stability, facilitating smooth mounting, dismounting, and cargo handling, ensuring a secure parking in diverse situations, even on inclines or uneven terrain.

Electric Trike Differential

The TriHauler's differential allows the two rear wheels to have different rotation speeds, ensuring better balance for the tricycle. This feature enhances handling during high-speed maneuvers or turns, minimizing the risk of tipping over or losing control. This ensures a safe and enjoyable riding experience.

WELL-BRAND COMPONENTS
Shimano® 6-speed shift system

It allows you to shift up or down quickly even when riding at high speed. Choose the suitable freewheel under the different riding conditions, it will improve the riding efficiency.

GEMMA® Hydraulic Brake

160mm disc brake system, smooth braking with quick response and rapid heat dissipation, combined with the automatic power-off function of brake, greatly shorten the braking distance.

kenda® Anti-puncture All Terrain Tire

The 24*4''( 20*4'' rear) tires stay safe with an improved tougher compound and aggressive tread pattern to prevent tires damage. Tires tread pattern Enhanced wet traction and reduced risk of hydroplaning

KMC® RUST-PROOF CHAIN

Equip with world-class KMC chain, it is designed to easily withstand extreme weather conditions, including salt, high humidity, snow and rain storm.

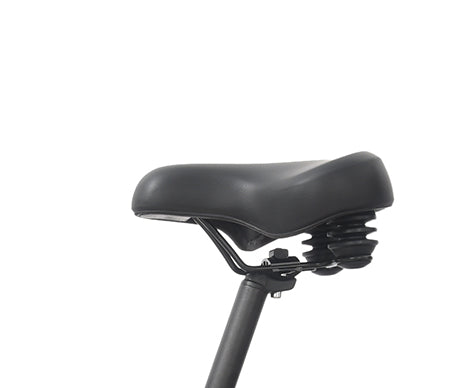

Big Comfortable Saddle

The Big comfortable Saddle provides excellent support on your sit bones with almost no pressure to the perineum area.

Functional Tail Light

HJMBIKE tail light has various functions, such as turn signal, double flashing light and brake light, which provides great safety for riding.

1
2
3
4
5
6
Shimano® 6-speed shift system

It allows you to shift up or down quickly even when riding at high speed. Choose the suitable freewheel under the different riding conditions, it will improve the riding efficiency.

GEMMA® Hydraulic Brake

160mm disc brake system, smooth braking with quick response and rapid heat dissipation, combined with the automatic power-off function of brake, greatly shorten the braking distance.

kenda® Anti-puncture All Terrain Tire

The 24*4''( 20*4'' rear) tires stay safe with an improved tougher compound and aggressive tread pattern to prevent tires damage. Tires tread pattern Enhanced wet traction and reduced risk of hydroplaning

KMC® RUST-PROOF CHAIN

Equip with world-class KMC chain, it is designed to easily withstand extreme weather conditions, including salt, high humidity, snow and rain storm.

Big Comfortable Saddle

The Big comfortable Saddle provides excellent support on your sit bones with almost no pressure to the perineum area.

Functional Tail Light

HJMBIKE tail light has various functions, such as turn signal, double flashing light and brake light, which provides great safety for riding.

Almost fully assembled.

Almost fully assembled.

We'll deliver TriHauler directly to your doorstep with all wheels already connected, requiring only minimal assembly. Once TriHauler arrives, you'll only need to install the pedals and connect the handlebars - it's that simple.

Opening the TriHauler packaging doesn't demand any prior mechanical knowledge or expertise. Our new packaging is designed to make it effortless for you to receive and unpack your TriHauler, ensuring you can start riding without the hassle of transporting it from a bike shop.

We'll deliver TriHauler directly to your doorstep with all wheels already connected, requiring only minimal assembly. Once TriHauler arrives, you'll only need to install the pedals and connect the handlebars - it's that simple.

Opening the TriHauler packaging doesn't demand any prior mechanical knowledge or expertise. Our new packaging is designed to make it effortless for you to receive and unpack your TriHauler, ensuring you can start riding without the hassle of transporting it from a bike shop.

Technical Specification
Battery UL-certified 48V 20Ah (960Wh) LG cells. Brake calipers GEMMA Hydraulic brakes
Motor 48V 750W Bafang Front hub motor Chain KMC C7NP
Throttle Thumb throttle Fenders Black aluminum fenders
USB ports 5V Fork Aluminum Alloy Integrated suspension front fork
Hightlight 45LUX Frame 6061 aluminum alloy
Tail Light Integrated light Freewheel Shimano 6-speed freewheel 14-34T
Spokes 12-gauge stainless steel Handlebars Custom formed aluminum
Charger 48V3A Kickstand Single-leg aluminum alloy
Pedal Assist Intelligent 5 level pedal assists Pedals VP aluminum alloy mountain type
Recommended Rider Height Above 5' Rims Alloy, Star Circle, 36H
Total Payload Capacity 480 lbs Saddle Leather comfort seat
N.W. 95.5 lbs Seat post Promax ∮31.8*350MM
Tires Front 24*4.0", rear 20*4.0" Kenda all-terrain Tires with reflective patches and puncture-proof

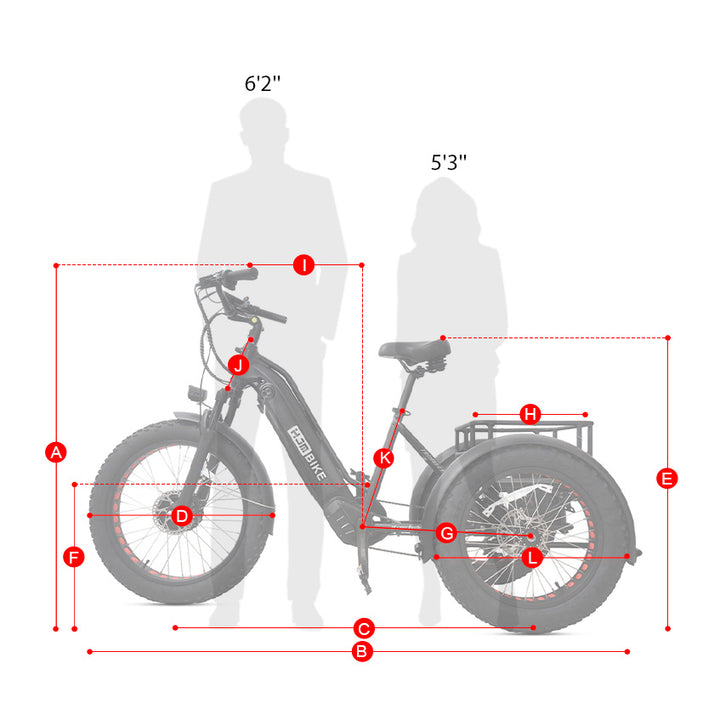

Geometry
A Handlebar Height 44.9"
B Total Length 69.7"
C Wheelbase 44.5"
D Wheel Size 24" x 4.0"
E Seat Height 29"-37"
F Stand Over Height 16.9"
G Chain Stay Length 19.7"
H Rear Rack 15.3"
I Handlebar Reach 17.3"
J Head Tube 6.5"
K Seat Tube Length 17.3"
L Wheel Size 20" x 4.0"
Width Tricycle Width 35.4"
Rear basket size (inner) 17.2" x 14.2" x 7.9"
Front basket size 14.9" x 14.2" x 6.2"
Distance Range
PEDAL-ASSIST
PAS
1 2 3 4 5
Single Battery(20Ah) Range
141 Miles 87 Miles 70 Miles 47 Miles 31 Miles
Dual Battery(20Ah+17.5Ah) Range
264 Miles 162 Miles 132 Miles 88 Miles 59 Miles
THROTTLE ONLY
Single Battery(20Ah) Range
30 Miles empty empty empty empty empty
Dual Battery(20Ah+17.5Ah) Range
57 Miles empty empty empty empty empty

*The above data is calculated based on a load of 165lbs, zero wind resistance, and a temperature of 25°C, with no uphill conditions.

Distance Range
PEDAL-ASSIST
PAS
1
2
3
4
5
Single Battery(20Ah) Range
141 Miles
87 Miles
70 Miles
47 Miles
31 Miles
Dual Battery(20Ah+17.5Ah) Range
264 Miles
162 Miles
132 Miles
88 Miles
59 Miles
THROTTLE ONLY
Single Battery(20Ah) Range
30 Miles
Dual Battery(20Ah+17.5Ah) Range
57 Miles

*The above data is calculated based on a load of 165lbs, zero wind resistance, and a temperature of 25°C, with no uphill conditions.

TriHauler Etrike User Guide

TriHauler Etrike User Guide

Discover the ultimate user guide for the HJM TriHauler Etrike! This comprehensive video tutorial will walk you through every aspect of operating and maximizing the potential of your Etrike. Whether you're a seasoned rider or a newcomer, this guide has got you covered. Learn how to unlock all the features and functionalities of your TriHauler Etrike and embark on an incredible journey with confidence. Don't miss this essential resource for all Etrike enthusiasts!

Discover the ultimate user guide for the HJM TriHauler Etrike! This comprehensive video tutorial will walk you through every aspect of operating and maximizing the potential of your Etrike. Whether you're a seasoned rider or a newcomer, this guide has got you covered. Learn how to unlock all the features and functionalities of your TriHauler Etrike and embark on an incredible journey with confidence. Don't miss this essential resource for all Etrike enthusiasts!
